2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

Brand Name : Firepower

Model Number : MFOG-910

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 500/month

Delivery Time : 1 week

Packaging Details : Sponge + Carton

Range : ±240°/s

Zero-bias stability( (10s, 1σ) : ≤0.8°/h

Angular random walk : ≤0.02°/h

3dB Bandwidth : ≥1000Hz

Zero-bias repeatability( (1σ) : ≤0.8°/h

Scale factor nonlinearity : ≤1000ppm

Weight : ≤150g

Power Consumption : ≤1.5W

Contact Now

Single Axis Fiber Optic Gyroscope Fog Fizoptika VG910F for Multi-Application Navigation
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview
The 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor (VG910) is a high-performance angular rate sensor designed for oil exploration and other demanding applications. This compact unit integrates optical, mechanical, and electronic systems into a robust package that operates based on the Sagnac effect, utilizing counter-propagating light beams through a micro-nano optical fiber coil to precisely detect angular velocity.
Key Features
  • All-solid-state design with no moving parts for exceptional reliability
  • Fast startup and long operational life (≥15 years)
  • Excellent resistance to shock (≥1500g) and vibration (≥70g)
  • Compact size and lightweight construction (≤150g)
  • Low power consumption (≤1.5W)
  • High MTBF (≥100,000 hours calculated assessment)
Performance Parameters
Parameter Specification
Range (°/s) ±240
Scale factor (mV/°/s) 47±5
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤0.8
Zero-bias repeatability (1σ, °/H) ≤0.8
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Power supply (V) 5+0.25+12

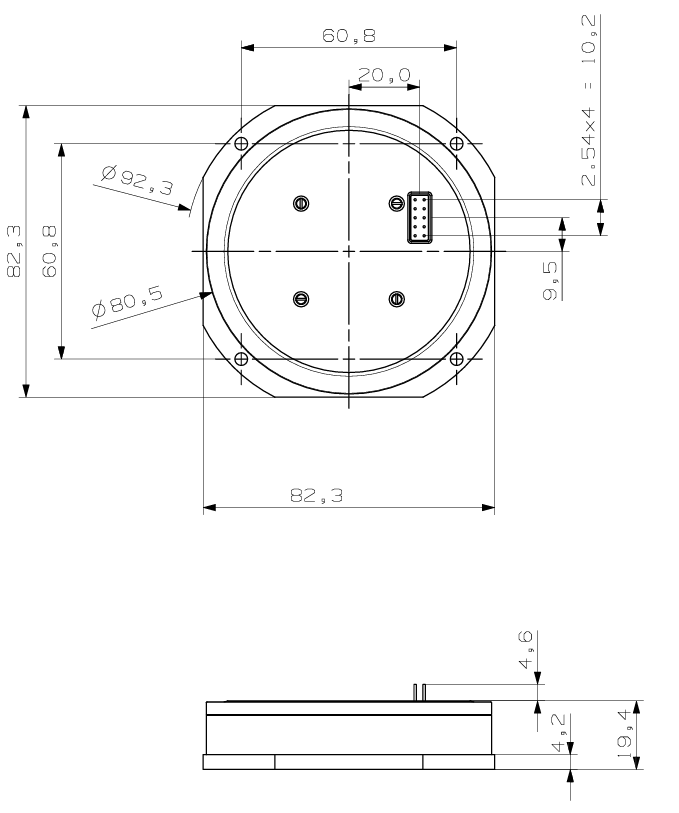

Product Diagrams
2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV
Front View
2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV
Side View
